Ibanez AZ24S2BK

SPECS

• neck typeAZRoasted Maple neck
• top/back/bodyAlder body
• fretboardJatoba fretboardWhite dot inlay
• fretJumbo Stainless Steel frets
• number of frets24
• bridgeT106 bridge
• string space10.5mm
• neck pickupIbanez Modern Custom (H) neck pickupPassive/Alnico
• bridge pickupIbanez Modern Custom (H) bridge pickupPassive/Alnico
• factory tuning1E,2B,3G,4D,5A,6E
• strings-
• string gauge.010/.013/.017/.026/.036/.046
• hardware colorChrome
• Scale :648mm/25.5"
• a : Width42mm at NUT
• b : Width57mm at 24F
• c : Thickness20.5mm at 1F
• d : Thickness22.5mm at 12F
• Radius :305mmR

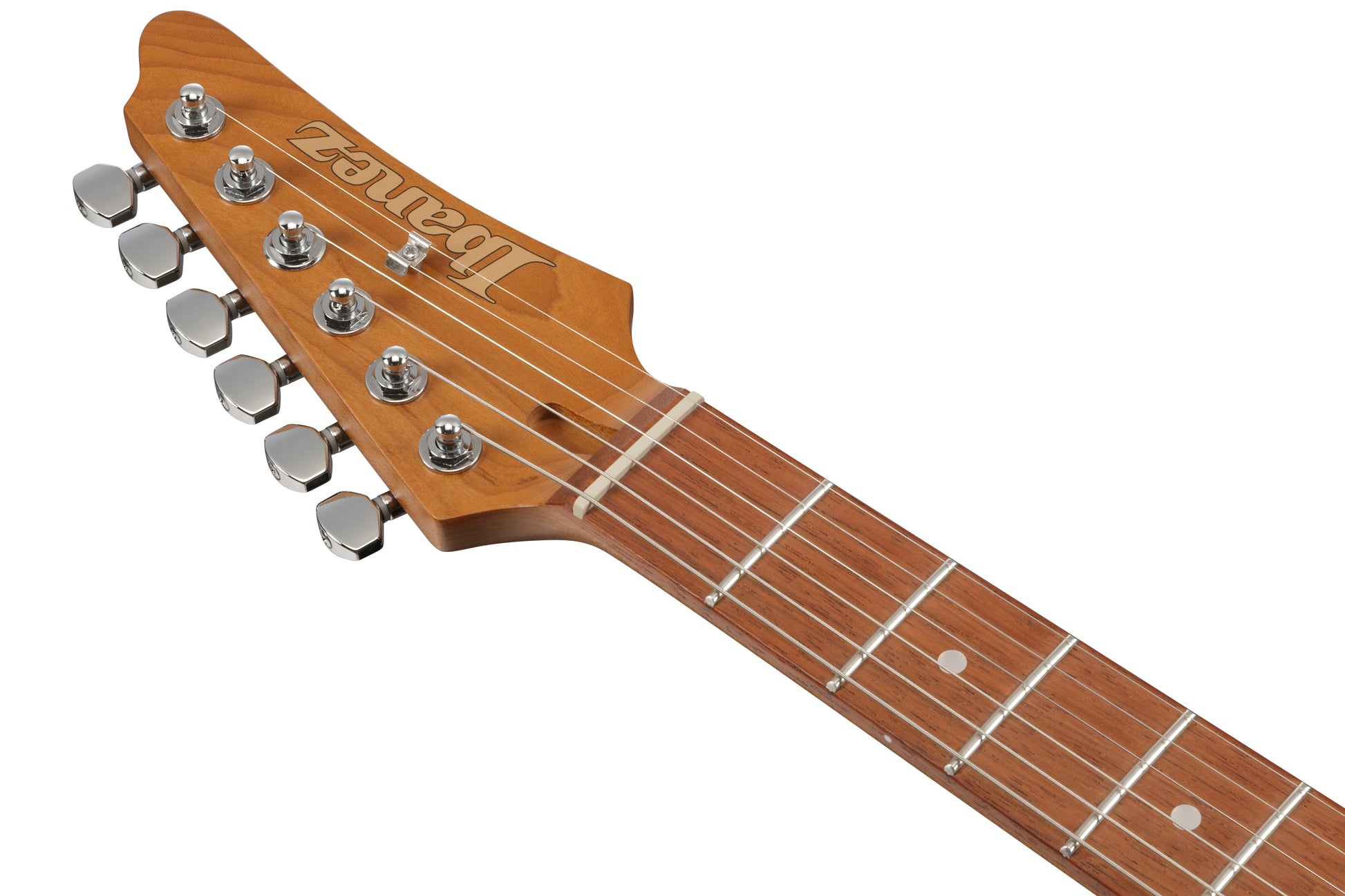

• Roasted Maple neck

The Roasted Maple neck is heat-treated to increase stability, durability, moisture resistance and tolerance of temperature changes.

Jatoba has a reddish brown color and produces a rich mid range with a crisp high end.

Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response and effortless articulation when playing chords and clear tone when playing single notes.

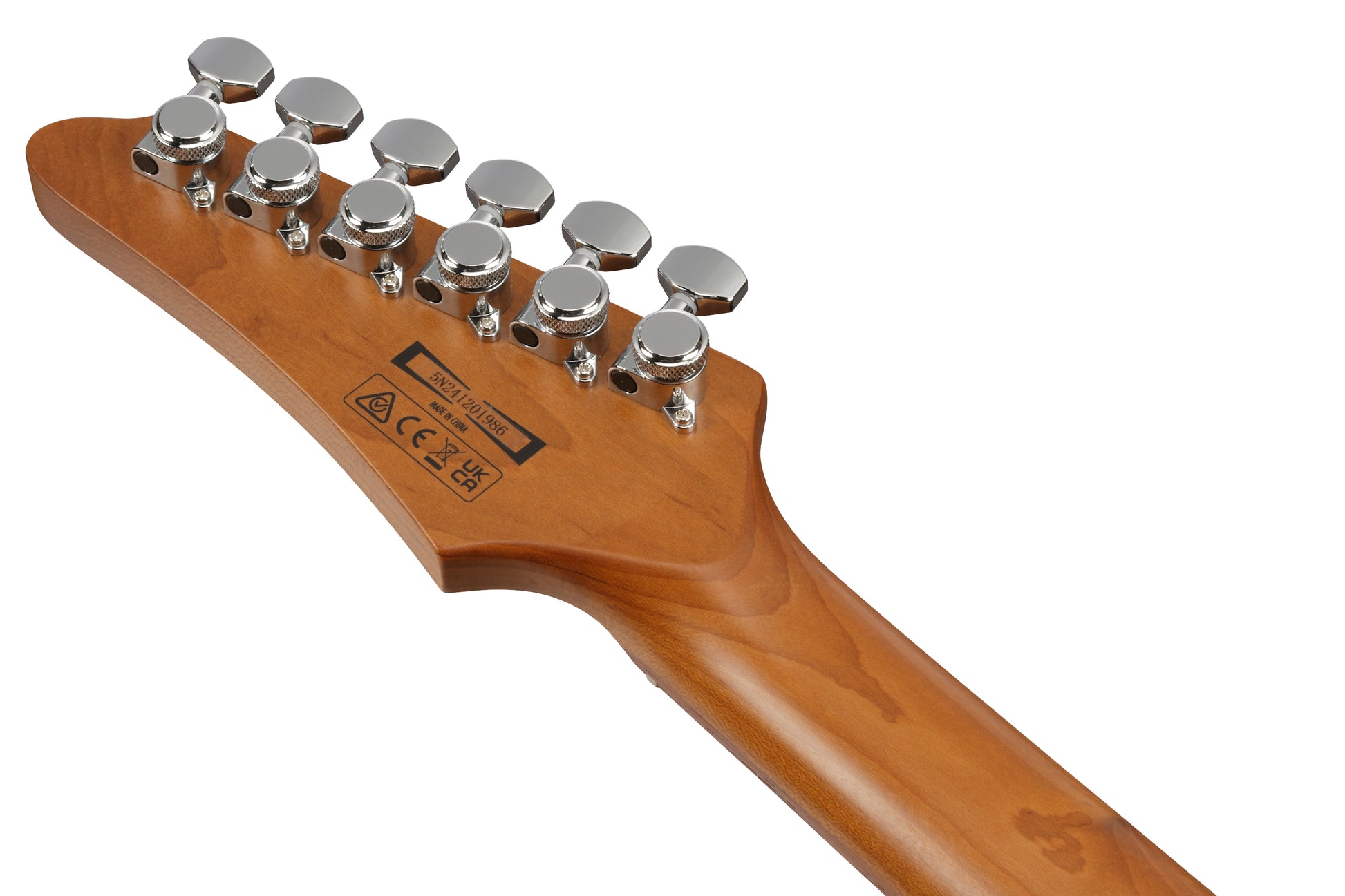

Locking machine heads ensure accurate and stable tuning.

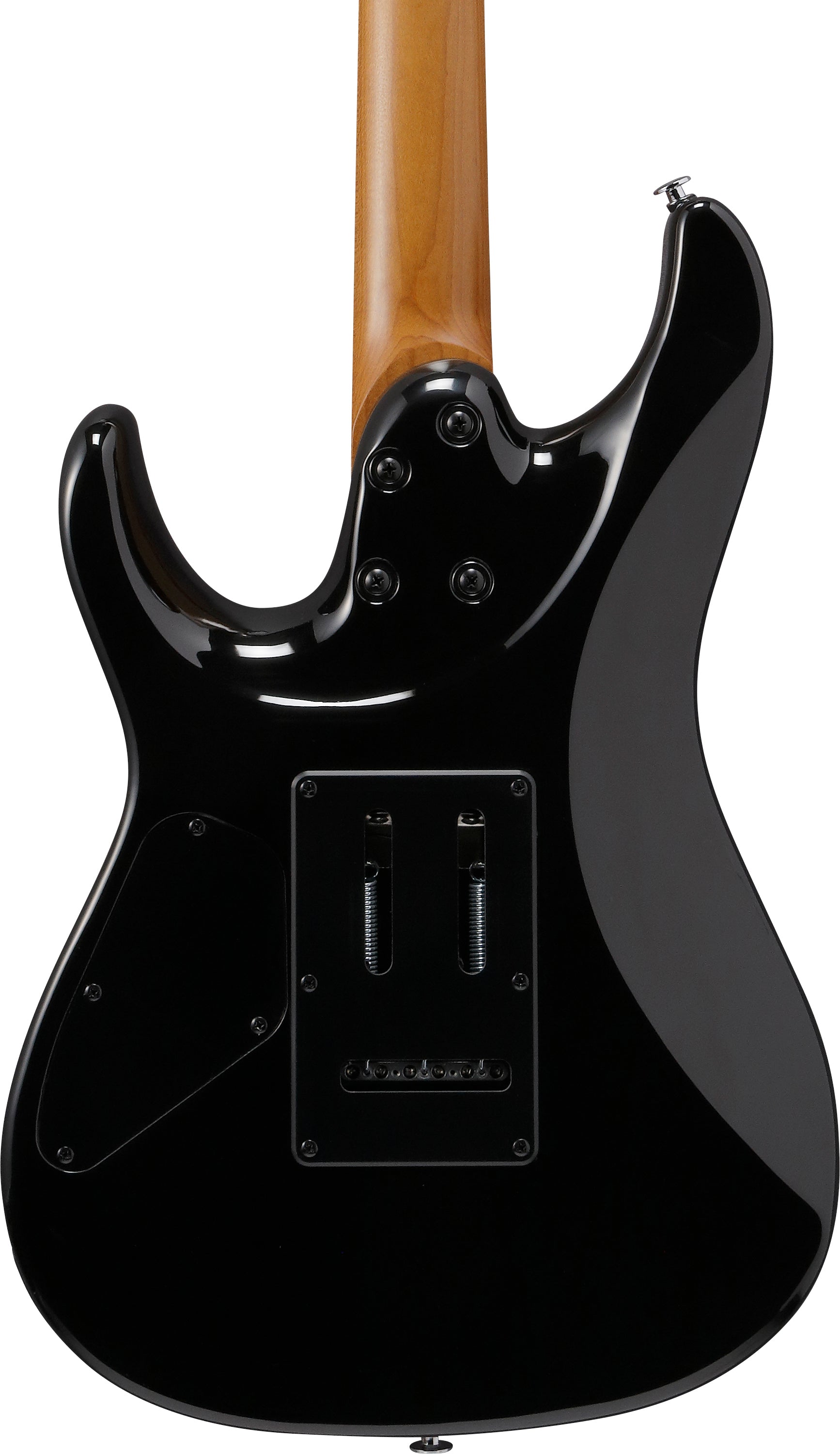

The Alder body delivers a well-balanced bright tone, enriched resonance and sustain.

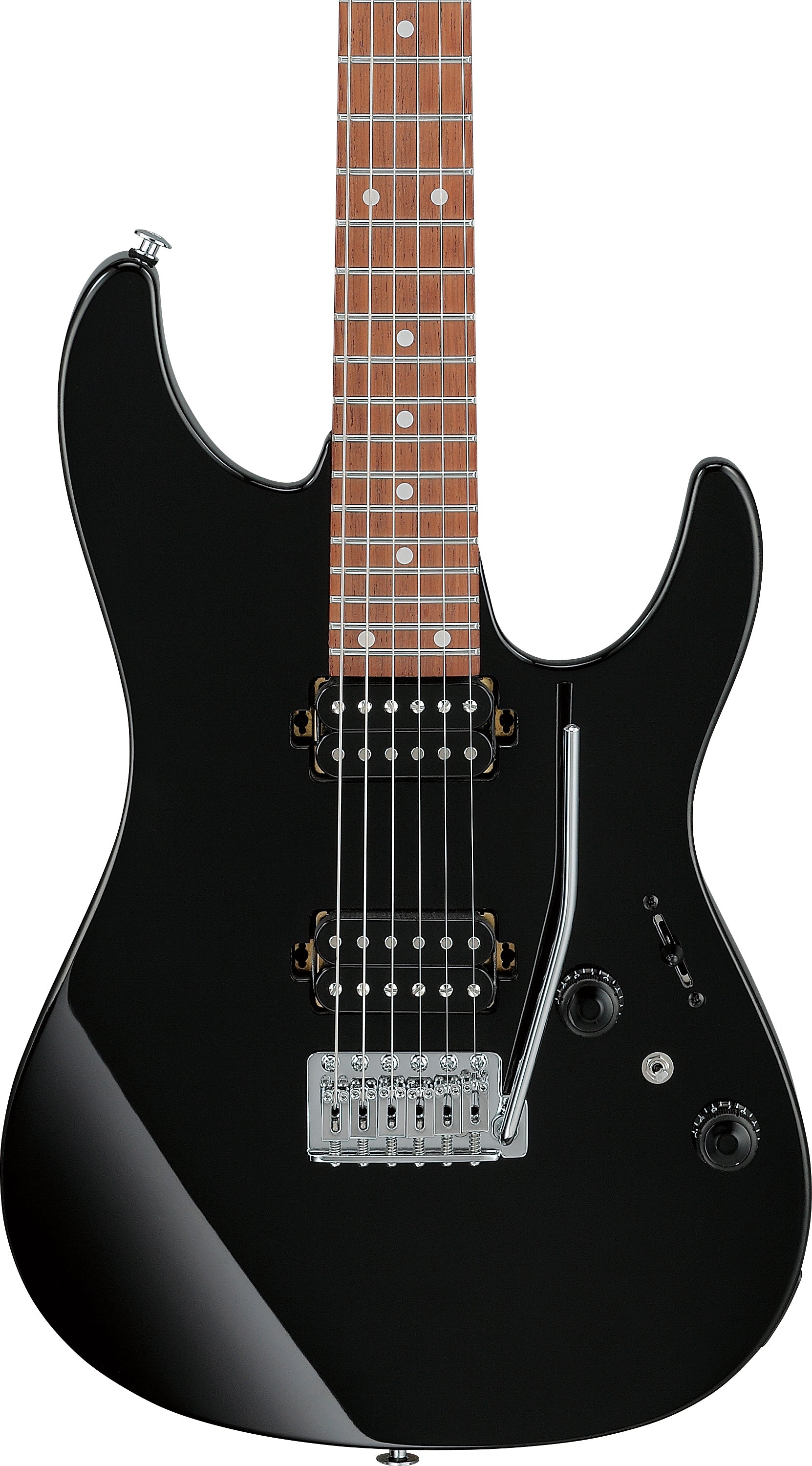

Ibanez Modern Custom pickups feature a dual humbucker configuration with alnico V magnets. They offer powerful tone and a quick response, which pair especially well with overdrive and distortion.

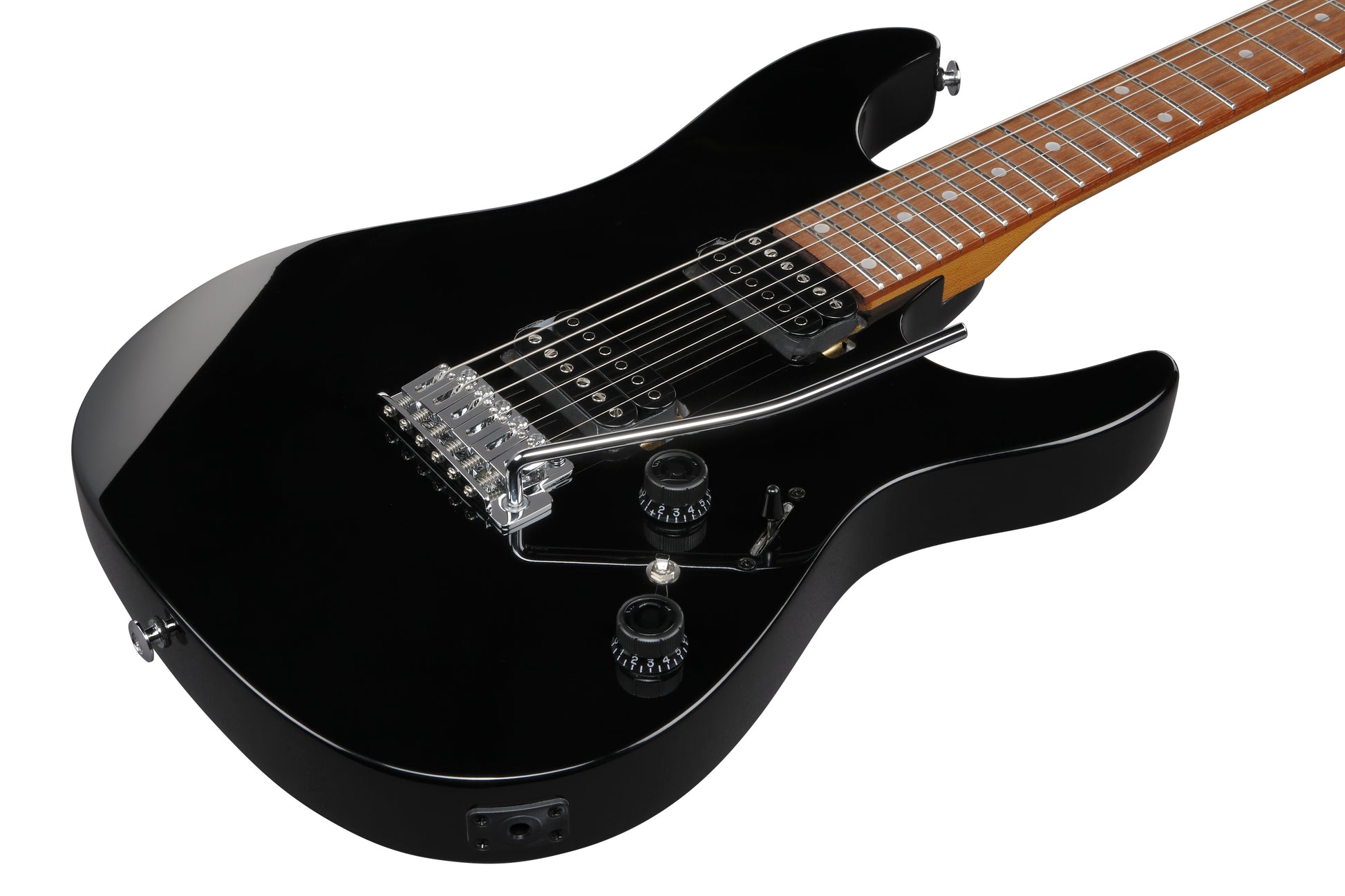

The T106 tremolo bridge with 6 independent saddles makes precise height and intonation adjustment of each string easy

The dyna-MIX 10 offers ten sound variations and can easily switch from humbucker and single coil modes with the mini switch. The power Tap mode provides a realistic single coil sound despite its two humbucker pickup layout.

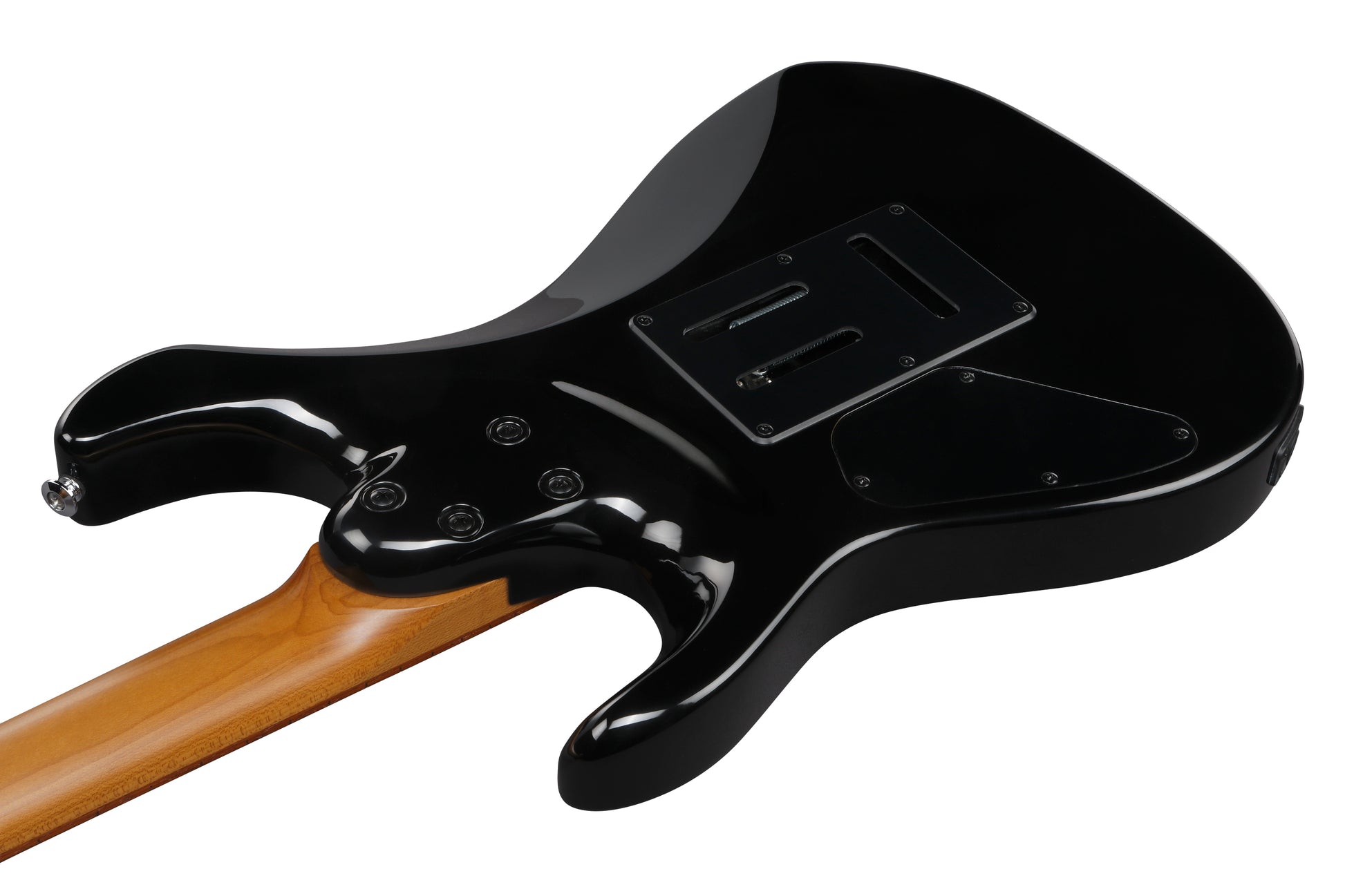

The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.
