Model SR5CMDXBIL

Brand Ibanez

Regular price $1,799.99
Regular price $1,799.99 Sale price $1,799.99
Sale Sold out
View full details

The SR5CMDX features a Black Ice Low Gloss Finish with gold hardware touches for a premium aesthetic to match its high quality features.

Atlas 5pc Panga Panga/Purpleheart neck with KTS™ TITANIUM rods
The Atlas 5pc Panga Panga/Purpleheart neck provides a well-balanced note attack and tone with rich sustain.The neck is constructed with KTS™ TITANIUM reinforcement rods, increasing its stability and adding sustain.

Premium Fret Edge Treatment
Premium Fret Edge Treatment offer super smooth,comfortable performance.

MR5S bridge
The MR5S bridge has adjustable saddles for variable string spacing by +/- 1.5mm, answering every bassist's specific string spacing needs.

Ibanez Custom Electronics 3-band EQ w/EQ bypass switch & Mid frequency switch
Ibanez Custom Electronics 3-band EQ is our latest refinement on the concept of simple, straightforward, no-nonsense EQ control. The Boost and Cut for the Mid Control are each centered on slightly different frequencies, an innovation that delivers a preset range of the most favorable bass tones.
Precision tonal control, including a switch to choose passive-only operation. When the EQ bypasses activated, the treble tone control knob becomes the global tone control for the passive circuit.

Panga Panga fretboard
Panga Panga features a beautiful wood grain which produces a tight low and mid range, along with a sharp attack on high end.

CONTROLS

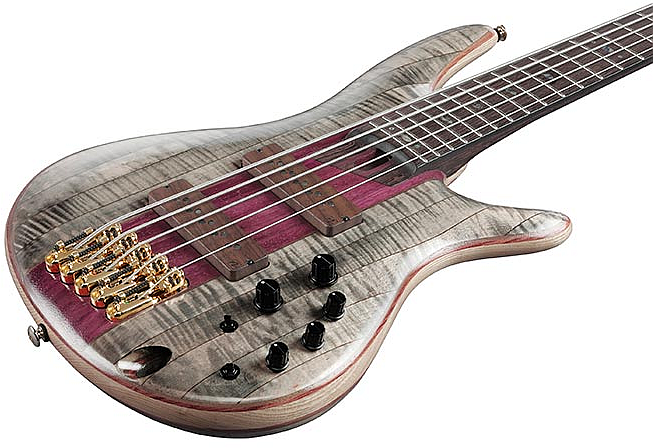

With the bass held in the playing position, there are three small knobs located towards the lower edge of the body. Directionally, from the lower bout towards the neck these knobs control treble boost/cut, mid boost/cut, and bass boost/cut knob. Above these are two larger knobs closer to the bridge. Of these, the knob closest to the end of the body is the pickup balance, and the knob located towards the neck is the volume knob. There are two switches on this bass. The switch closest to the lower edge of the body is a 3-way mid frequency switch. When the switch is in neck position, mid boost peak is at 250Hz. When the switch is in center position, mid boost peak is at 450Hz. When the switch is in bridge position, mid boost peak is at 800Hz. The other switch closer to the middle of the bass is the EQ bypass switch. When the switch is in neck position, the EQ is off. When the switch is in bridge position, EQ is on. When EQ is off, the treble knob works as a passive tone control knob.

FREQUENCY RESPONSE
The bass boost/cut frequency curve has a peak at 20 Hz, the variable width becomes smaller toward the high range, and the variable width becomes zero at about 1000 Hz. The variable range of the peak frequency is approximately ±15 dB. The treble boost/cut frequency curve draws a mountain-shaped curve with a peak at around 10,000 Hz and zero variable range around 100 Hz. The variable range of the peak frequency is approximately ±15 dB. The mid-boost/cut frequency curve creates a bell-shaped curve that peaks at a specific frequency, and the variable range becomes zero near 20 Hz and around 10,000 Hz. The frequency peak can be switched to 700, 450 and 250 Hz. The variable range of the peak frequency is approximately ±15 dB.


SPECS

  • neck type: Atlas-5 5pc Panga Panga/Purpleheart neck w/KTS™ TITANIUM rods
  • top/back/body: Curly Maple/Purpuleheart/Walnut top Curly Maple/Purpleheart/Walnut back Ash body
  • fretboard: Bound Panga Panga fretboard Abalone oval inlay
  • fret: Medium frets Premium fret edge treatment
  • number of frets: 24
  • bridge: MR5S bridge
  • string space: 16.5mm
  • neck pickup: Nordstrand™ Big Single wood covered neck pickupPassive
  • bridge pickup: Nordstrand™ Big Single wood covered bridge pickupPassive
  • equaliser: Ibanez Custom Electronics 3-band EQ w/ EQ bypass switch (passive tone control on treble pot) & 3-way Mid frequency switch
  • factory tuning: 1G,2D,3A,4E,5B
  • strings: D'Addario® EXL165 + .130
  • string gauge: .045/.065/.085/.105/.130
  • nut: Graph Tech® BLACK TUSQ XL® nut
  • hardware color: Gold
